| Simple DIY Pipe Shelf |
Industrial pipe shelves seem to be popping up everywhere.
They are on sale in stores for big bucks and there are tons of DIY ideas to make your
own. When Jeff and I were finishing our basement,
we were going for the industrial feel so what better of a project than a shelf
made from pipes.
Many of the ideas have numerous levels
and can get a bit intricate and time consuming.
We didn't have the space or need for a large unit yet, so a single
shelf was made.
Supplies list:
- Iron pipes
- Pipe flanges
- Pipe caps
- Pipe brackets (they hold the shelf to the pipe)
- Metallic spray paint
- Lag screws or serious drywall anchors (not recommended)
- Pine panel - ours was 16" x 8' ($23) but they cut it to size
- Polyurethane
 |
| Pipe, flange and end cap for simple pipe shelf |
When purchasing the piping, we needed the shelf to be 18" in width, as an audio receiver is going to sit on it. The pine was 16", but we planned on keeping it a few inches away from the wall so wires could go behind it. The hardware store sold the pipes pre-threaded, but it was much more expensive than buying the pipe by the foot and then having an employee use the pipe cutter and threading machine. The employee may try to sell you on the pre-cut and threaded pipes because it's time consuming for them to cut and thread the pipes.You'll save quite a bit more this way though.
 |

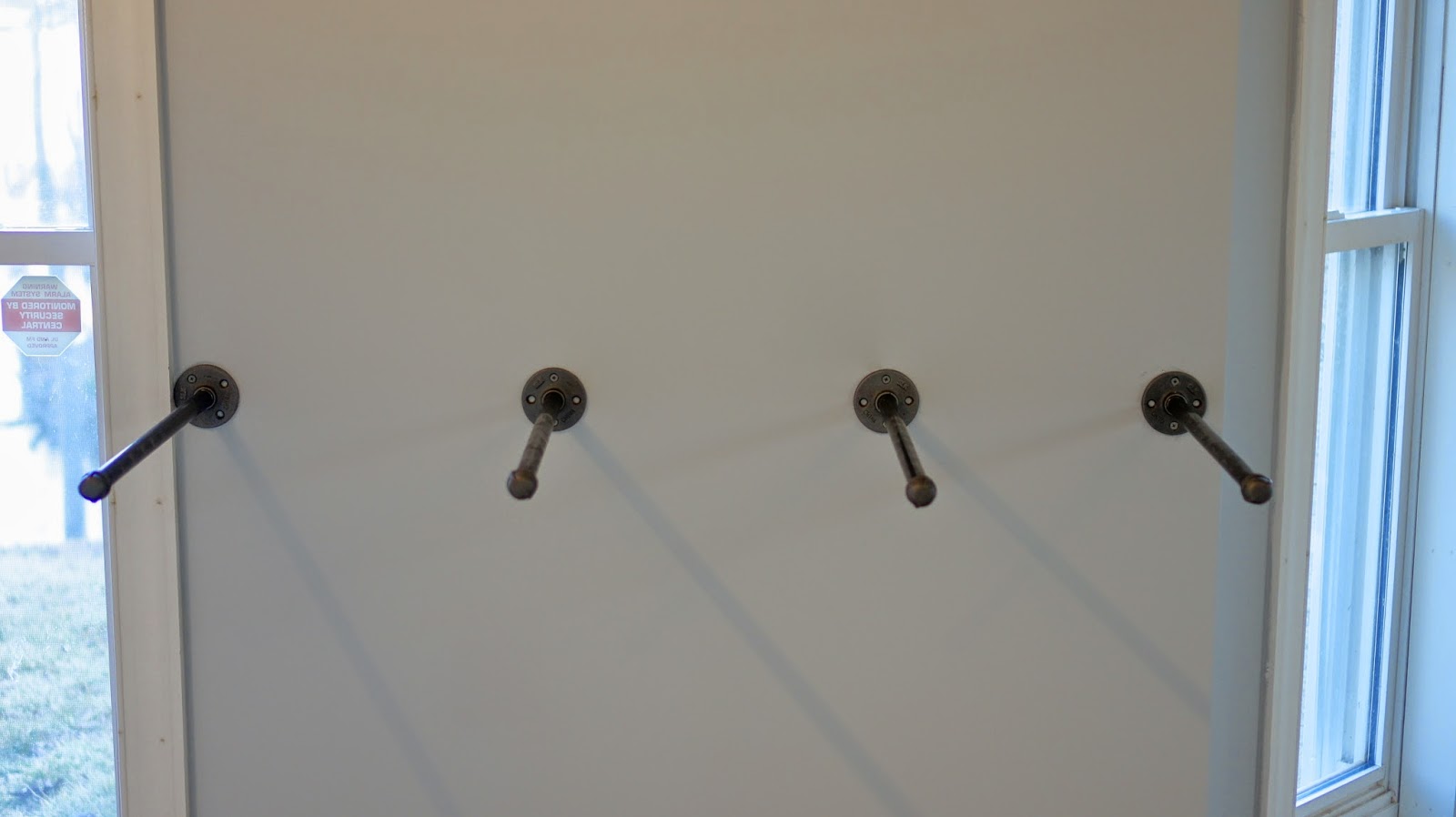

| Test fitting pipe flanges for shelf |
 |
| Test fitting board on pipe shelf |
Prior to painting, we used a mixture of rubbing alcohol and water plus steel wool to remove as much grease and grime as possible from the pipes, of which there was a ton. You'll need to do this so the paint adheres properly.
We also applied a coating of polyurethane to the pine, but it doesn't show very well in the pictures.
Putting the shelf together is very straight forward, especially our single level design. Make sure to attach the flanges to the studs in the wall, or your drywall may be coming down with the shelf!
 |

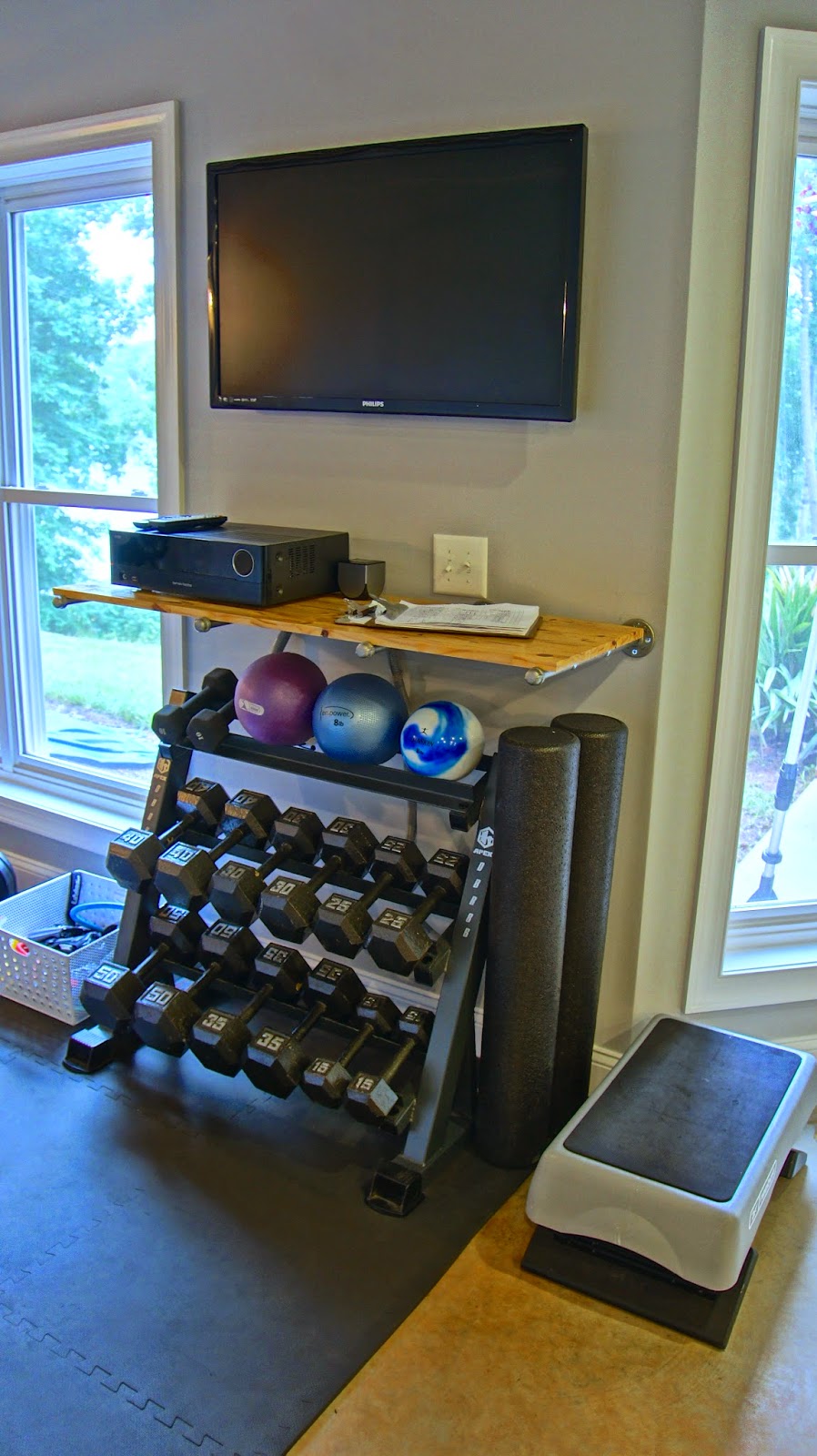

| Simple industrial DIY pipe shelf |
We got the look we were aiming for and the shelf is not only serving its purpose, but it is also appealing to the eyes. No matter the type of wood and number of shelves, this project is a sure winner for any DIYer.
P.S. - More on that gym later!
